CTS Series
MIL-PRF-27

Current Transformer (Square Package)

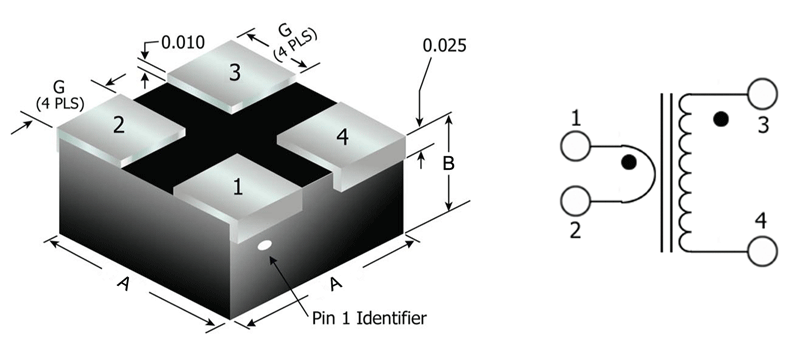

PHYSICAL PARAMETERS

CTS100

A

B

G

WT

.250 ± .010

CTS200

.400 ± .010

CTS300

CTS400

.400 ± .010

.525 ± .010

.230 Max

.230 Max

.310 Max

.310 Max

.135

.135

.085

.200

0.6 g

1.5 g

2.8 g

4.1 g

FEATURES

  • Leadless device for minimum footprint

  • Low EMI Radiation

  • Low Thermal Expansion permits mounting on most substrate materials

SPECIFICATIONS

  • Operating temperature range: -55°C to 125°C

  • Temperature rise at rated DC current is less than 30°C

  • Inductance tested at 10 kHz

  • Dielectric Withstanding Voltage: 500 VAC

  • Moisture, Shock, and Immersion Resistant

  • Resistance to Soldering Heat: 265°C for 10 sec

  • Terminations: 90/10 Tin/Lead Plating

  • Welded Connections, Transfer Molded Package

  • Space Application: Available to MIL-STD-981

TAPE & REEL
(additional charge)

Package

Large Reel (Qty)

1,000

650

Small Reel (Qty)

200

300

CTS100

650

300

200

125

CTS200

CTS300

CTS400

ELECTRICAL CHARACTERISTICS

CTS101

CTS102

CTS103

Part

Number

Current

Peak Max

(A)

Volt-Sec Min

(v-µsec)

DCR Max ()

SCTS100 Series

SCTS200 Series

SCTS300 Series

SCTS400 Series

5

5

5

CTS201

CTS202

CTS301

CTS302

CTS401

CTS402

Inductance
Reference (mH)

Turns Ratio

10

10

20

10

20

20

144

288

40

80

40

40

20

20

40

0.85

1.20

5.60

1.20

1.50

1.20

7.90

2.90

6.00

2.80

5.70

23.00

4.40

8.90

4.40

35.00

21.00

85.00

1:100

1:200

1:50

1:200

1:50

1:100

1:50

1:100

1:200
